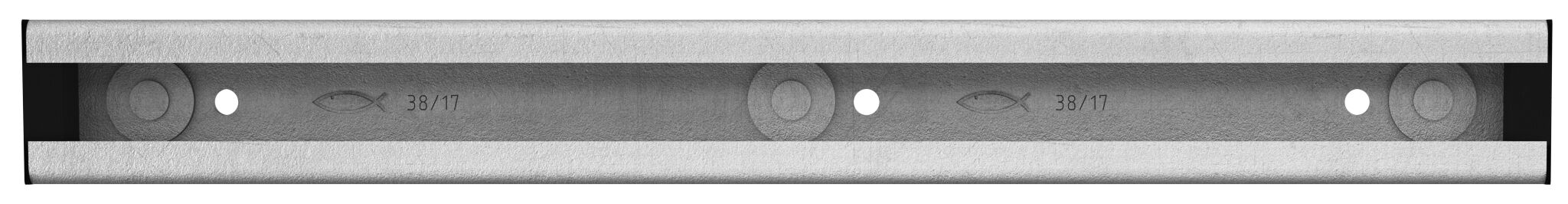

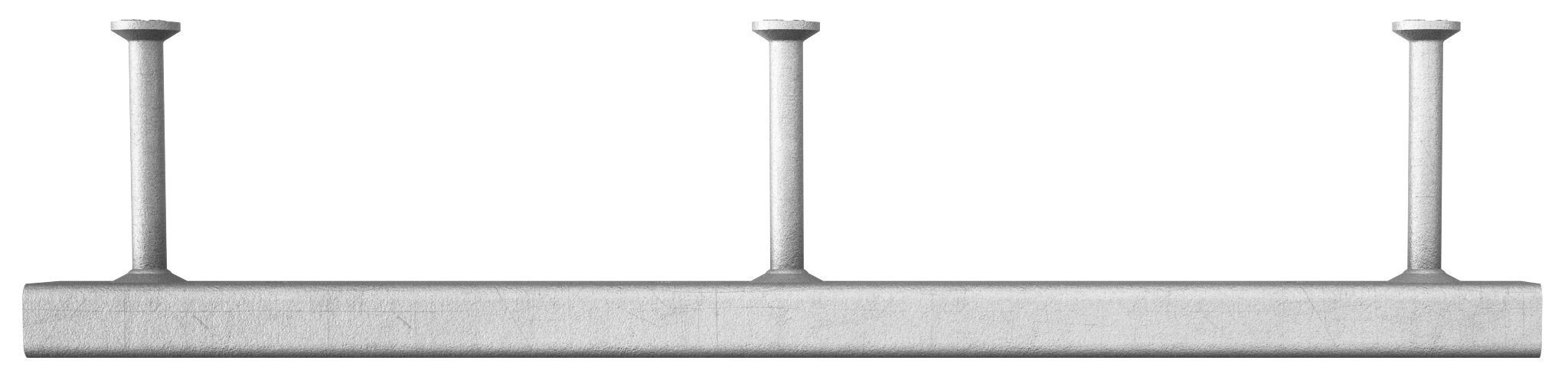

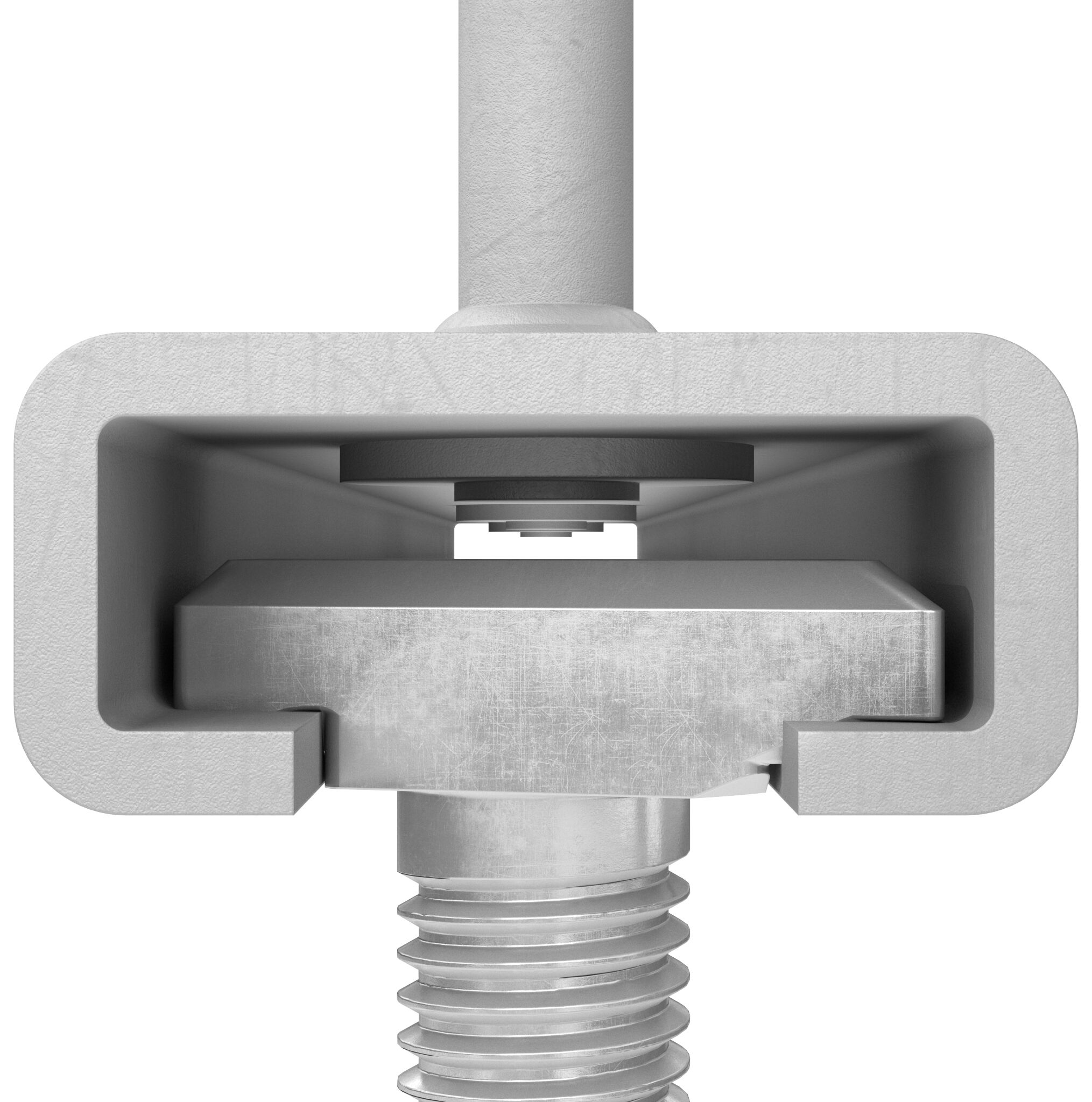

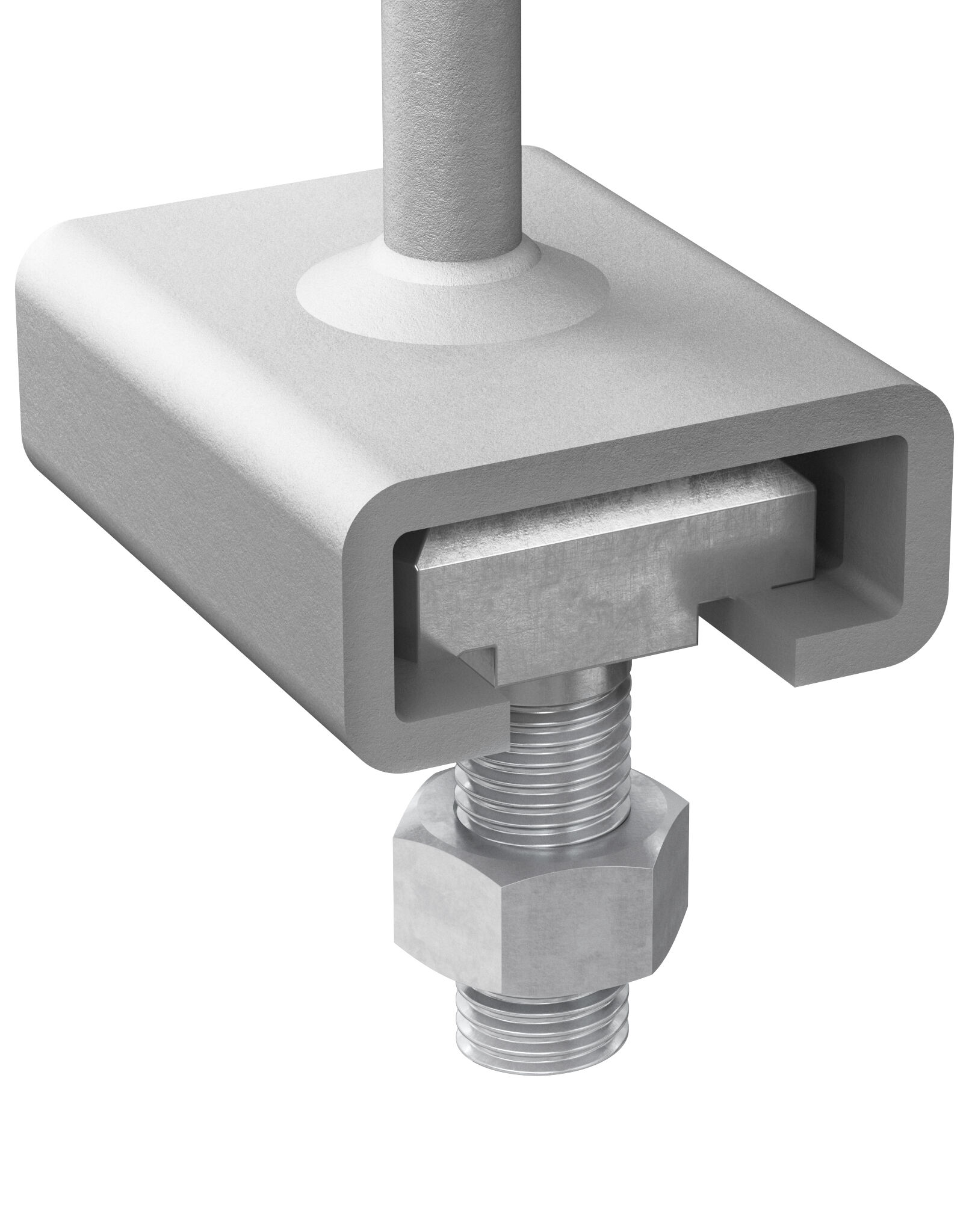

- FES-C-28/15-3050-HDG
| ETA-approval | |
| Length ( l ) | 3.050 mm |
| Width ( bch ) | 28 mm |
| Height ( hch ) | 15 mm |
| Thickness ( tch ) | 2,3 mm |
| Channel opening width ( dch ) | 12 mm |
| Anchor length ( la ) | 31 mm |
| Number of anchors | 16 pcs |
| Anchor spacing ( s ) | 200 mm |
| Total embedment depth ( hnom ) | 46,5 mm |
| Effect. anchorage depth ( hef ) | 45 mm |
| Min. thickness concrete ( hmin ) | 70 mm |
| Thread ( M ) | M8-M12 |
| Match | FBC-28/15, M8-M12 |
| Type | Round anchor |
| Amount | 1 pcs |
| GTIN (EAN-Code) | 4048962360288 |
