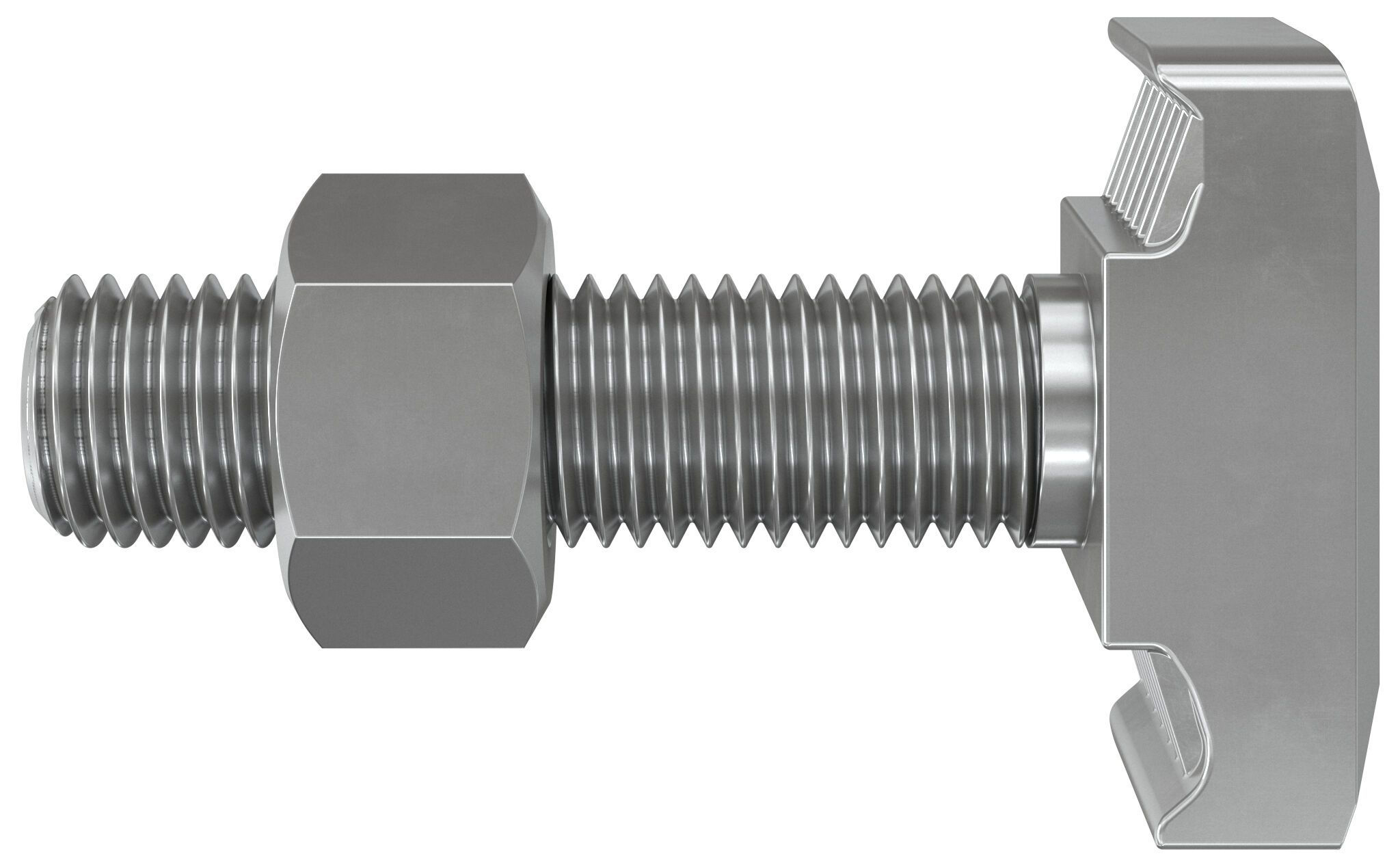

fischer Channel bolt InnoLock FBC-S-225-M16x100-A4-70

Name: fischer Channel bolt InnoLock FBC-S-225-M16x100-A4-70
Brand: fischer

Varianti del prodotto

CAD Data

Download of image data

Top Features

Only for InnoLock FES RS-S profiles with serration.
All directional load capacity.
Marked on bolt tip with two staggered grooves.
Steel grade: A4-70.

Serrated channel bolt for optimum strength and safety with InnoLock-geometry.

Advantages

Unique InnoLock FBC-S with specially designed channel bolt geometry that perfectly interlocks in the InnoLock channel with serrated lips.
Thus giving optimum load capacity with high safety.
All directional load capacity.
Plus optimum load capacity in longitudinal direction in combination with InnoLock FES-RS-S due to the full serration of the system.
Ideal prepositioned fixing solution, capable of covering on-site tolerances.
Suitable for applications in cracked and non-cracked concrete.
Permanently adjustable fixing solution.

Serrated channel bolt with InnoLock-geometry which ensures maximum interlocking in combination with the matching fully serrated InnoLock anchor channels.

Properties

Steel grade 70 acc. to EN ISO 3506:1:2020
Hexagonal nut acc. to EN ISO 3506-2:2020

Functionality

InnoLock FBC-S channel bolts can be variably set in the planned position of Innolock Cast -in Channels.
They are easily fixed by turning them clockwise and then applying the specified torque moment.
Suitable for use in combination with fischer InnoLock Cast-in Channels FES-RS-S.

Visualizza le istruzioni di assemblaggio come PDF

Installation Channel bolt serrated InnoLock FBC-S

1 / 13

Thread ( M )	M16
Diameter ( d )	16 mm
Length ( l )	100 mm
Length channel bolt head ( b_cbo,1 )	21 mm
Width ( b_cbo2 )	43 mm
Height ( t_cbo )	10,7 mm
Min. spacing channel bolts ( s_cbo )	80 mm
Match	FES-RS-S-600 / FES-RS-S-700
Profile	FBC-S-225
Material	A4
Amount	25 pcs
GTIN (EAN-Code)	4048962542790
