Cast-In

Anchor rail systems

Cast-In

Maximum load capacity - minimal effort

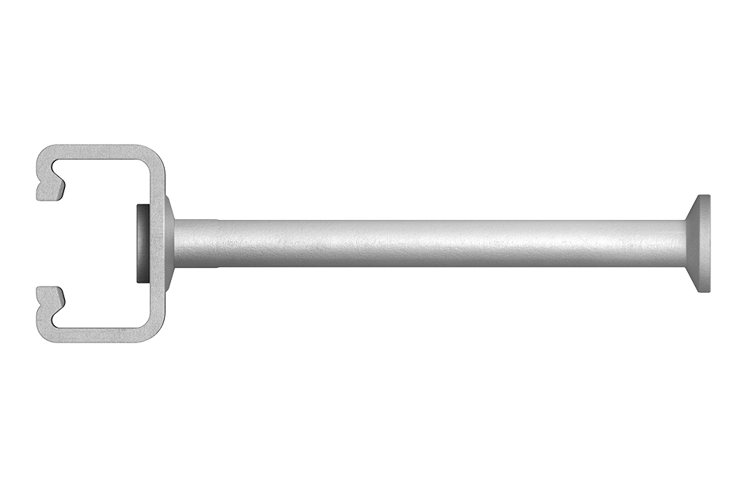

The InnoLock FES anchoring rails combine maximum load capacity and installation efficiency. Due to the full toothing of the system, they not only have excellent load-bearing capacity in all load directions, but are also characterised by their flexible and economical installation.

The roll-forming production process does not require high temperatures. Compared to the previously known process, this is significantly more energy-efficient, which significantly reduces CO2 emissions and thus makes a noticeable contribution to environmentally friendly, sustainable construction. The low heat input also enables the production of precise tooth profiles with sharp edges, without form distortion due to cooling. The result is that significantly lower tolerances and highest manufacturing accuracy.

The intelligent fastening solution enables easy and time-saving fastening of the facade elements, so that tolerances on site can also be compensated for. Subsequent adjustment or alignment of the mounted elements is possible throughout the entire service life.

Planning freedom - even close to the edge

With InnoLock PowerEdge, even the most demanding requirements for the installation of curtain facades can be met. This unique
and innovative addition to the InnoLock FES anchor rail simplifies planning and ensures a safe and efficient system that permits high transverse loads even with fasteners close to the edge.

fischer InnoLock - the advantages at a glance

Quick to install:
Easy integration into existing reinforcement
Reduced costs in facade construction:
Uniform dimensioning of detachable parts
Safe load transfer:
Reliable adherence to edge distance
Unique solution:
Ideal for demanding installation situations
Efficient planning:
One system across all floors

Our anchor rail systems

Typical applications are:

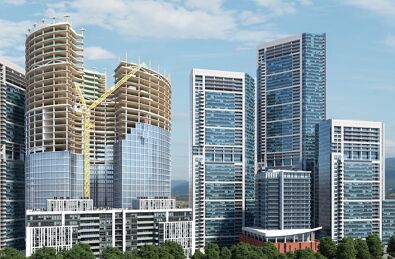

Commercial & Residential

  • Facade
  • Attachment of lifts
  • HVAC applications

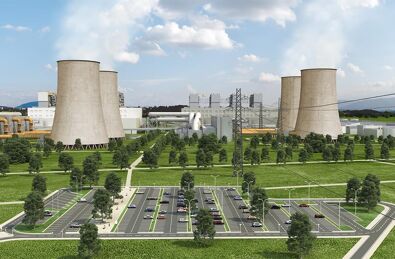

Industrial and energy plants

  • Facade
  • Machine and shelf mounting
  • HVAC applications
  • Attachment of lifts

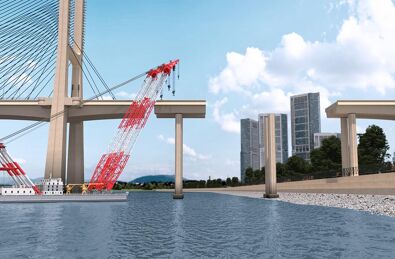

Road and bridge construction

  • HVAC applications
  • Attachment of traffic signs, safety fences and noise barriers

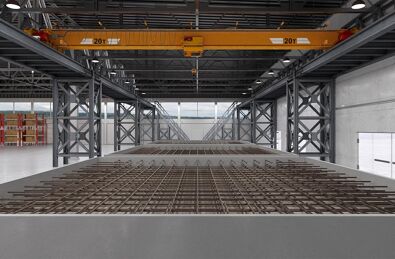

Precast concrete parts

  • Various prefabricated elements
  • HVAC applications
  • Fixing of equipment

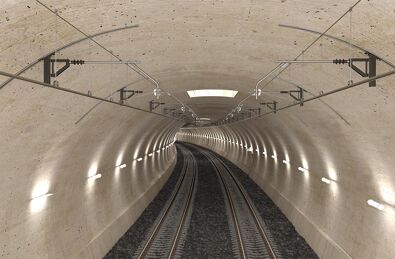

Metro and railways

  • HVAC applications
  • Attachment of traffic signs
  • Attachment of evacuation platforms

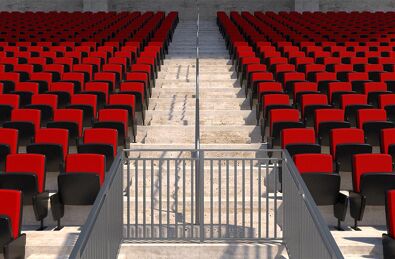

Stadium construction

e.g. seat attachment

Our references:

Technical Support Group

CAD database

Download and import the CAD models of the fischer products you need into your individual CAD software. We support all standard software, including the different versions.

More information

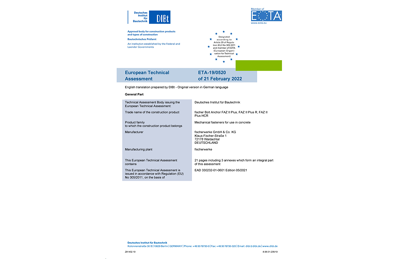

Download Center

Technical Download Center

Here you will find all relevant documents on our fischer products, such as approvals, safety data sheets, certificates, sales documents and much more.

To the Technical DownloadCenter

Technical Support

Get in contact with us. Our experts are looking forward to support you.

fischer FiXperience software CHANNEL-FIX

CHANNEL-FIX

Design program for anchors in reinforced concrete with anchor rails

Advantages include:

  • Six different applications possible in reinforced concrete and enable all possible applications for anchor rails
  • Different combinations of anchor plates, profiles, stiffeners, concrete quality, loads, anchor rails
  • Various variations of additional reinforcement types that can be selected

Calculate online

Our product highlights

fischer FireStop

Passive fire protection is a central element of building security and therefore an indispensable component of construction planning. Particularly in the case of complex facade systems, it must be integrated into the overall concept. Only with consistent, systematic and approved implementation can the safety of people and buildings be guaranteed in the long term.

More information about fischer FireStop
