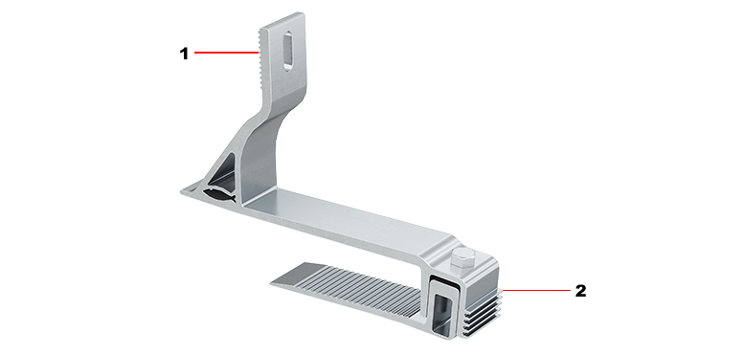

Designed for PV panels on pitched tile roofs with ventilation layer of variable thicknesses, CH AL clamp hook can be fastly mounted without screws fastened on the load-bearing structure. The peculiar clamp installation allows to easily installing it without fastening points on the roof structure.
LAB AL landscape angle bracket
The landscape angle bracket LAB allows to customize the PV panels layout: by adding the bracket to hooks with vertical adjustment, it is possible to provide landscape orientated installation.
The bracket design perfectly fits the hook shape and helps keeping the screw in position while fastening the nut.
RAB AL reinforcement bracket
The RAB bracket is an optional accessory that allows the CH AL hook to be connected to the load-bearing structure through a lateral knurling.
Its installation is fast, thanks to the screwless connection to the hook, and easy: only one screw is needed for the connection to the load-bearing structure.
The lateral knurling matches the hook knurling and allows an adjustable positioning, adapting to variable ventilation layer thicknesses.
SOLARPANEL-FIX is an Online module of the FiXperience Suite for the design of mounting systems for photovoltaic panels: it supports professionals in the design of the photovoltaic substructure through a clear and logical flow.
The software allows to automatically calculate the actions of snow and wind loads through the geolocation of the construction site, according to the requirements of the European Standard EN 1991 (Eurocode 1). In addition, it allows to download the bill of materials to create the substructure, the installation plan and a technical report. The latter outlines the structural checks of the system parts, according to the European Standards EN 1993 (Eurocode 3), EN 1999 (Eurocode 9) and according to fischer specifications.
